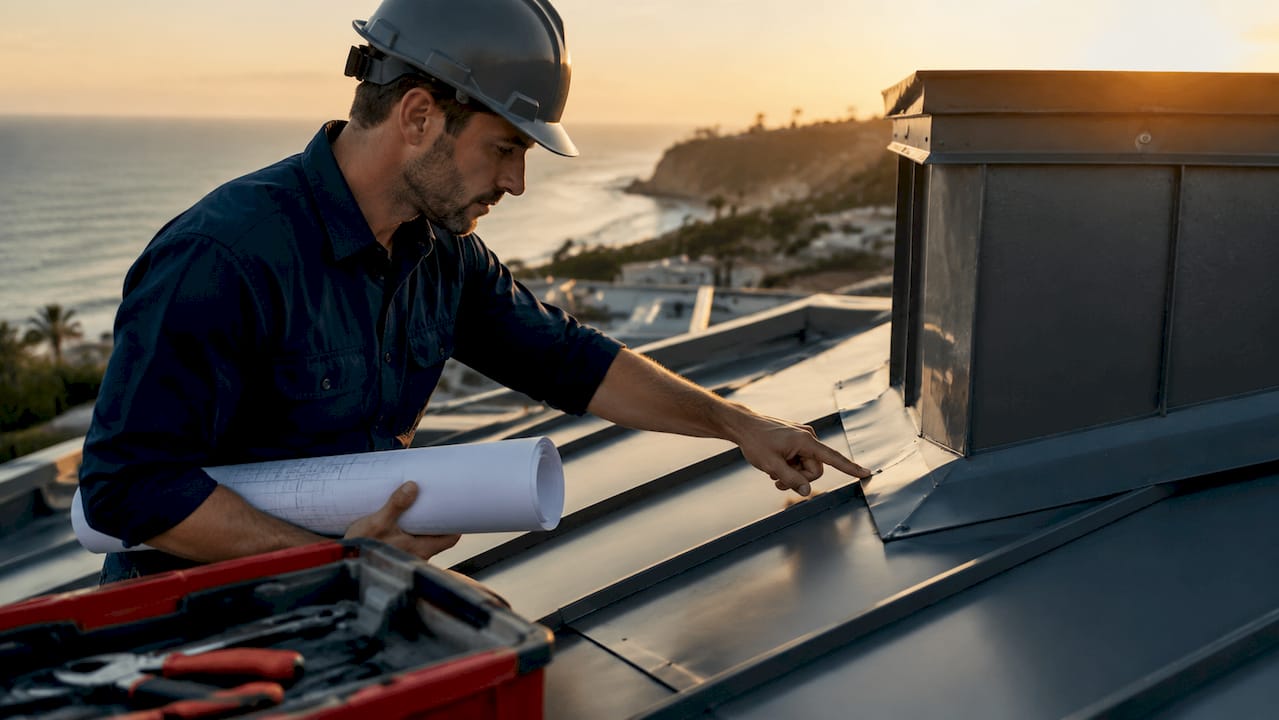

Standing seam flashing details are the specific design and installation elements that keep a standing seam metal roof weather-tight while allowing the metal to expand and contract freely. Get these details wrong and you get leaks, buckling, and callbacks. Get them right and the roof performs for decades. Concealed fasteners in standing seam panels already eliminate one major leak path. Flashing details handle the rest, covering every transition, edge, and penetration where water finds a way in. MidAtlanticMetalPanels supplies complete flashing packages built specifically for the panel profiles contractors are running in Virginia, Maryland, Washington DC, Pennsylvania, and West Virginia.
What are the key standing seam flashing details?
Standing seam flashing details cover every location where a panel field ends and another surface begins. That includes ridges, eaves, sidewalls, endwalls, valleys, and penetrations like skylights and pipes. Each location has its own geometry, drainage direction, and movement requirement. A detail that works at a ridge will fail at a sidewall if applied without adjustment.

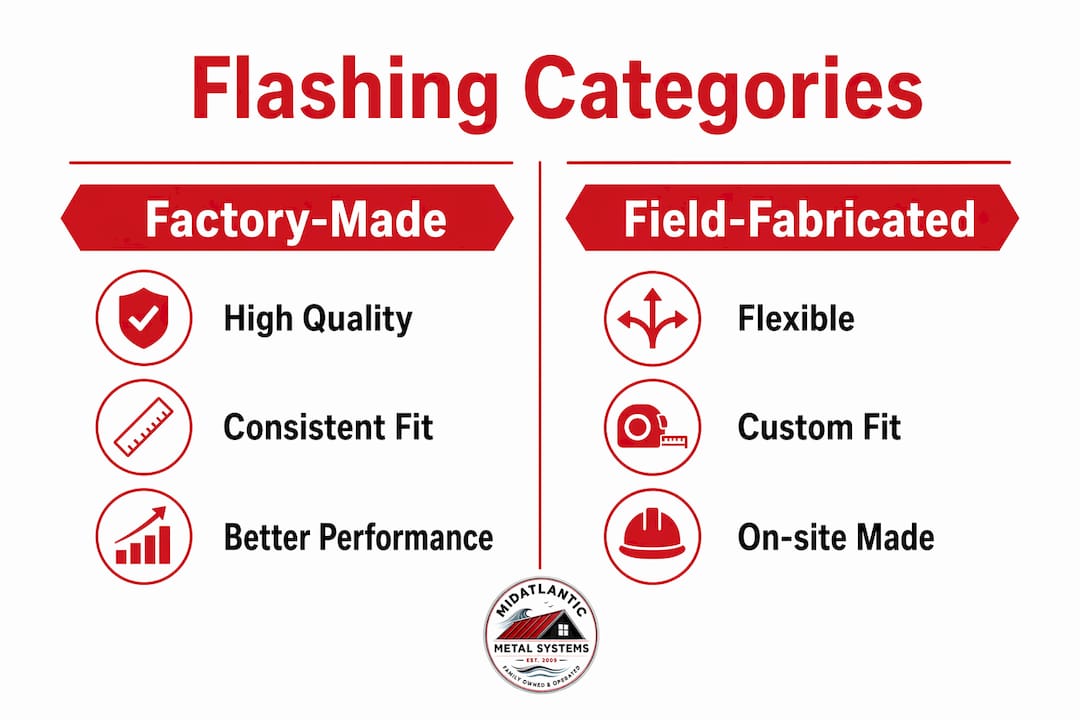

The industry groups these into two categories: factory-made and field-fabricated. Factory-made flashing performs better at critical edge and transition areas because it is manufactured to match the exact panel profile. Field-fabricated flashing introduces variation in bend angles and metal thickness that can compromise fit and long-term performance.
Thermal expansion must be factored into every flashing detail. Metal moves significantly across temperature swings common in the Mid-Atlantic region. A flashing detail that pins the panel or restricts movement creates stress at fastener points, which leads to metal fatigue and eventual failure.
Common flashing types and their functions
- Ridge flashing: Caps the peak of the roof and must allow panel ends to float without restriction.
- Eave flashing: Directs water off the roof edge and into gutters; integrates with the starter cleat.
- Sidewall flashing: Manages water at vertical wall-to-roof transitions running parallel to panel direction.
- Endwall flashing: Handles transitions where panels terminate perpendicular to a wall; the highest-risk detail for leaks.
- Valley flashing: Channels water from two converging roof planes; requires open or closed valley configurations depending on pitch.
- Kick-out flashing: Diverts water away from wall cladding at the bottom of a sidewall transition.
Material and gauge specifications
Most flashing components for standing seam systems run in 24-gauge or 26-gauge steel, matching the panel gauge to prevent galvanic incompatibility and maintain consistent color. Mixing gauges at transitions creates differential movement rates that stress seams over time. MidAtlanticMetalPanels manufactures flashing in both gauges using Englert metal systems, so color and finish match the panel field exactly.
Pro Tip: Order your flashing package from the same supplier as your panels. Color-match tolerances between different coil runs can be visible on a finished roof, especially on low-slope applications where the flashing is seen from grade.
How do you properly install standing seam flashing?
Correct installation sequence is the single biggest factor in flashing performance. Contractors who install components out of order create conditions where water can travel behind flashing rather than over it.
- Install the water-resistive barrier (WRB) first. Lay the WRB across the entire roof deck before any metal goes down.
- Set eave cleats and starter strips. Cleats spaced at 12-inch intervals provide secure attachment while allowing the panel to slide during thermal movement. Do not reduce cleat spacing at eaves without engineering justification.
- Install sidewall and endwall base flashings. These go down before panels reach the wall. Embed the base flashing under the WRB at the wall and over the roof deck.
- Run panels to the wall transition. Leave the clearance specified by the system detail. Do not force panels tight to the wall.
- Lap the WRB over the top of the base flashing. The WRB must lap over roof flashing at wall transitions, not behind it. Reversing this lap is one of the most common installation errors in the field.
- Install cap flashing or counterflashing. Terminate the upper edge with a reglet or tuck the flashing under the WRB. Never rely on caulk alone as the primary termination.
- Apply profile-matched closures with continuous butyl tape. Set closures at panel ends to block wind-driven rain from entering the seam cavity.
- Fasten with pancake head screws. Overdriving screws deforms the metal and creates a depression that acts as a capillary entry point for water. Snug is correct. Tight is damage.
Pro Tip: Use a torque-limiting driver bit when fastening metal flashings. It removes the guesswork from screw tension and prevents the dishing that leads to callbacks.
What are the biggest challenges at complex roof transitions?
Roof-to-wall transitions, endwalls, and penetrations are where most standing seam failures originate. Improper trim, closure, or flashing integration causes more edge and transition failures than panel defects. The panel field almost never leaks. The details do.
Thermal movement at endwalls
Pinning panel ends at endwalls is a common mistake. When a panel cannot move longitudinally, thermal stress concentrates at the fastener. Over time, the fastener hole elongates or the metal buckles. The correct approach uses a Z-closure or open-hem detail that lets the panel slide under the flashing without restriction.
Sealant versus mechanical termination
Sealants fail prematurely in high-UV and repeated wetting environments. The Mid-Atlantic region gets both. Mechanical terminations using reglets, termination bars, or under-WRB installation are the correct primary seal at upper flashing edges. Sealant plays a secondary role, filling gaps after the mechanical connection is made.
Best practices summary
| Challenge | Correct approach |
|---|---|
| Panel buckling at endwall | Use Z-closure; do not pin panel ends |
| Water intrusion at sidewall | Lap WRB over base flashing, not behind it |
| Screw-driven leaks | Use pancake head screws; do not overdrive |
| Sealant failure at upper edge | Install reglet or tuck under WRB as primary seal |
| Wind-driven rain at panel ends | Set profile-matched closures with continuous butyl tape |
How does seam type affect flashing design?
Seam type and roof pitch directly determine which flashing strategies are valid. Using snap-lock flashing details on a mechanical seam system, or vice versa, creates mismatches in seam height and clip geometry that compromise the entire assembly.
Mechanical seam systems handle pitches as low as 1:12. Snap-lock systems require at least 3:12 for proper drainage and wind performance. That difference matters for flashing design because low-slope applications require tighter lap dimensions, more aggressive sealant placement, and closer attention to drainage direction at every transition.
Some systems also specify a minimum drainage slope of 5/8 inch per 12 inches of run at valley and eave details. That slope requirement affects how valley flashing is formed and how much clearance the eave detail needs to shed water without ponding.
| Seam type | Minimum pitch | Primary flashing consideration |
|---|---|---|
| Mechanical lock (1") | 1:12 | Low-slope drainage; tighter sealant laps |
| Snap lock (1.5") | 3:12 | Wind uplift resistance; clip spacing |
| Both systems | 5/8":12 minimum drainage | Valley and eave drainage slope |
MidAtlanticMetalPanels supplies both 1" mechanical lock and 1.5" snap lock panels through Englert metal systems. Matching the panel profile to the correct flashing package at the time of order prevents profile mismatches on the job site. You can also review 24-gauge vs. 26-gauge options to confirm the right gauge for your specific application before placing a flashing order.
Key Takeaways
Correct standing seam flashing details require profile-matched components, proper WRB sequencing, mechanical terminations at upper edges, and thermal movement accommodation at every panel transition.
| Point | Details |
|---|---|
| WRB sequencing is critical | Lap the WRB over base flashing at wall transitions, never behind it. |
| Avoid pinning panel ends | Use Z-closures at endwalls to allow thermal movement without buckling. |
| Mechanical terminations outperform sealant | Use reglets or under-WRB installation as the primary upper-edge seal. |
| Match seam type to pitch | Snap-lock systems need at least 3:12; mechanical seam systems work down to 1:12. |
| Factory-made flashing performs better | Profile-matched factory flashing reduces fit variation at critical transitions. |
Why I think most flashing failures are a sequencing problem
After years of working with contractors across Virginia and Maryland, the pattern is consistent. The leak is almost never in the panel field. It is at a transition, and when you trace it back, the root cause is almost always installation sequence, not material quality.
The WRB-over-flashing rule gets reversed more often than it should. Contractors who come from shingle backgrounds sometimes install the WRB first and then try to tuck flashing behind it. That works with shingles. With metal, the geometry is different and the result is a reverse lap that channels water directly into the wall.
The other failure I see repeatedly is over-reliance on sealant at upper terminations. Sealant is not a primary waterproofing strategy. It is a gap filler. When a reglet or termination bar is not used, the sealant eventually cracks from UV exposure and thermal cycling, and the roof leaks at the exact point where the contractor thought it was sealed.
My recommendation: treat every flashing detail as a sequencing problem first and a material problem second. Get the order right, use mechanical terminations at upper edges, and source factory-made flashing that matches your panel profile. The material quality matters, but sequence failures will beat good materials every time.
— Matt Catino
MidAtlanticMetalPanels flashing packages for standing seam contractors
MidAtlanticMetalPanels supplies complete trim and flashing packages built to match 1" mechanical lock and 1.5" snap lock panel profiles in both 24-gauge and 26-gauge steel. Every component is color-matched to the panel coil, so you get consistent finish from ridge to eave without chasing color variations between suppliers.
Contractors in Virginia, Maryland, Washington DC, Pennsylvania, and West Virginia can order custom trim and flashing fabricated to their specific job requirements. MidAtlanticMetalPanels delivers directly to the job site, which means your flashing package arrives with your panels and your crew is not waiting on a separate order. Contact MidAtlanticMetalPanels to spec your next project with a Richmond standing seam package that includes matching flashing from the same coil run.
FAQ
What are standing seam flashing details?
Standing seam flashing details are the specific design and installation elements at roof edges, transitions, and penetrations that keep a standing seam metal roof weather-tight. They cover ridges, eaves, sidewalls, endwalls, valleys, and penetrations.
Why does the WRB lap direction matter at wall transitions?
The wall water-resistive barrier must lap over the top of the roof flashing, not behind it. Reversing this lap creates a reverse drainage path that channels water directly into the wall assembly.
Can you use sealant as the primary seal at upper flashing edges?
Sealant fails prematurely under UV exposure and thermal cycling. Mechanical terminations such as reglets or under-WRB installation are the correct primary seal; sealant fills secondary gaps only.
What is the minimum pitch for snap-lock standing seam systems?
Snap-lock systems require a minimum pitch of 3:12 for proper drainage and wind performance. Mechanical seam systems handle pitches as low as 1:12.
How far apart should flashing cleats be spaced?
Cleats should be spaced at 12-inch intervals to provide secure attachment while allowing the panel to move during thermal expansion and contraction.
